High lift Low lift Medium lift		JJ Journal Jack
₯Journal jacks have been well reputed with excellent durabilty for many years.

Application
₯Jack-up, jack-down for heavy loads.
EPositioning adjusting and support heavy load, and structures,
ESuitable for shipbuilding, bridge works and civil construction works.
@@@@@@@@ ‚htems
Model		 Capacity
kN(tf)		 Stroke (mm) Closed height
(mm)		 Hed diameter
(mm)		 Basic diameter
(mm)		 Weight
(kg)
 Handle bar
(ƒΣ25~mm) 		Traversing Bed
Model length of Traverse
(mm)
Low lift
 JJ-1513 150(15) 125 255 63 113 12 ƒΣ25~600L TB-1530 300
JJ-2513 250(25) 125 255 77 127 16 ƒΣ25~700L TB-2530
TB-2545		 300
450
JJ-3513 350(35) 130 280 87 147 24 ƒΣ32~700L TB-3530
TB-3545		 300
450
JJ-5013 500(50) 130 290 105 166 31 ƒΣ32~800L TB-5030 300
JJ-10011 1000(100) 105 310 127 235 75 ƒΣ32~1500L - -
Medium lift JJ-1015 100(10) 150 280 65 108 12 ƒΣ25~600L TB-1030 300
JJ-2525 250(25) 250 395 77 127 21 ƒΣ25~700L TB-2530
TB-2545		 300
450
JJ-3020 300(30) 200 350 95 148 26 ƒΣ25~700L TB-3030
TB-3045		 300
450
JJ-3525 350(35) 250 410 87 147 32 ƒΣ32~700L TB-3530
TB-3545		 300
450
JJ-5025 500(50) 250 445 105 166 42 ƒΣ32~800L TB-5030 300
High lift JJ-2533 250(25) 330 485 77 127 25 ƒΣ25~700L TB-2530
TB-2545		 300
450
JJ-3535 350(35) 350 535 87 147 37 ƒΣ32~700L TB-3530
TB-3545		 300
450
JJ-5035 500(509 350 555 105 166 47 ƒΣ32~800L TB-5030 300



AJ-2510		 AJ Aluminum Jack
ELightweight jack with Aluminum body
ESpecial sliding pad is used instead of bearing
ECompact and lightweight construction
EAvoid rough handling of jack due to lightweightconstruction
EApplied to centering of machinery, moving fine machinery,building construction etc.
@@@@@@@@@ Items
Model		 Capacity
kN(tf)		 Stroke
(mm)		 Closed Height
(mm)		 Head Diameter
(mm)		 Base Diameter
(mm)		 Weight
(kg)		 Handle
bar
(ƒΣ~mm)
AJ-1008 100(10) 80 175 58 102 6.1 ƒΣ27.2~575L
AJ-1510 150(15) 100 200 58 102 6.8 ƒΣ27.2~575L
AJ-2510 250(25) 100 200 73 122 9.5 ƒΣ30~675L



NJ-2513		 Journal Jack with Toe
Available for lifting up and down by inserting toe at narrow space.
When toe is detached, you can use the same way as journal jack.
@@@@@@@@@ Items
Model		 Capacity
kN(ton)		 Stroke
(mm)		 Closed
Height
(mm)		 Height
up to toe
(mm)		 Width
of toe
(mm)		 Depth
of toe
(mm)		 Weght

(kg)		 Handle
bar
(ƒΣ~mm)
NJ-0615 60(6) 150 290 30 70 45 23 ƒΣ25~600L
NJ-1013 100(10) 125 266 40 75 50 29 ƒΣ25~600L
NJ-1513 150(15) 125 270 45 80 50 38 ƒΣ25~700L
NJ-2513 250(25) 130 298 55 90 55 60 ƒΣ32~700L

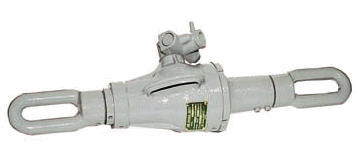

PL-2510		 PL Mechanical Pulling Jack
Mainly applied to draw a heavy objects in shipyards etc.
@@@@@@@@@@@ Items
Model		 Pulling
(kN)		 Pulling
Stroke
(mm)		 Weight
(kg)		 Handle-bar
(ƒΣ~mm)
PL-2510 250(25) 100 32 ƒΣ25~700L
